System Sealed
Woofer count 1
Woofer size 15" (381 mm)
Woofer type Coated paper cone
Passive Unit 1
Passive Unit size 15" (381 mm)
Passive Unit type Coated paper cone
- T 215-IW
2"MDF, sealed cabinets reduce the distortion and eliminate the box resonance caused by the sound pressure. Passive radiator to get the deepest low frequencies.
Built in 1000W, class D amplifier.The latest research and development of LIGpower switching power supply technology improves efficiency, provides stable voltage output for power amplifier, and full energy storage, and restores freely when large dynamic signal is applie d.

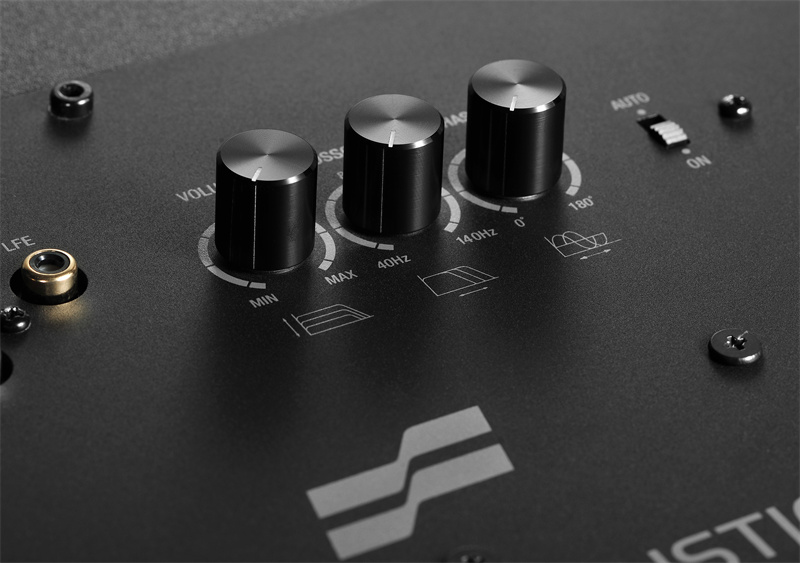

The volume and frequency crossover point can be adjusted continuously, and there is also a phase 0 degree to 180 degree adjustable. High and low level input, 0.5W standby low power consumption without signal automatic standby mode, effective management of power amplifier.
Wide excursion driver for maximum dynamic range, and a short circuiting ring on both the magnet and T yoke, which can reduce the inductance of the voice coil and reduce the distortion. The unit is more easily driven, and the transient response speed is greatly improved.
Built in 1000W, class D amplifier.The latest research and development of LIGpower switching power supply technology improves efficiency, provides stable voltage output for power amplifier, and full energy storage, and restores freely when large dynamic signal is applie d.
The volume and frequency crossover point can be adjusted continuously, and there is also a phase 0 degree to 180 degree adjustable. High and low level input, 0.5W standby low power consumption without signal automatic standby mode, effective management of power amplifier.
Wide excursion driver for maximum dynamic range, and a short circuiting ring on both the magnet and T yoke, which can reduce the inductance of the voice coil and reduce the distortion. The unit is more easily driven, and the transient response speed is greatly improved.
- COMPONENTS
- PERFORMANCE
- DIMENSIONS
Amplifer type Class D with Analog Preamp Stage
Power handing 1000W RMS / 2000W Peak
Features Volume, Lowpass, Phase, Auto Power
Phase 0-180 degrees adjustable
Frequency response 24 Hz - 140 Hz
Power handing 1000W RMS / 2000W Peak
Features Volume, Lowpass, Phase, Auto Power
Phase 0-180 degrees adjustable
Frequency response 24 Hz - 140 Hz
Cabinet specifications (H × W × D) 995 × 500 × 306 mm
Frameless grill Non
Product weight (each) 55.9 kg
Shipping weight (each) 61.1 kg
Frameless grill Non
Product weight (each) 55.9 kg
Shipping weight (each) 61.1 kg
