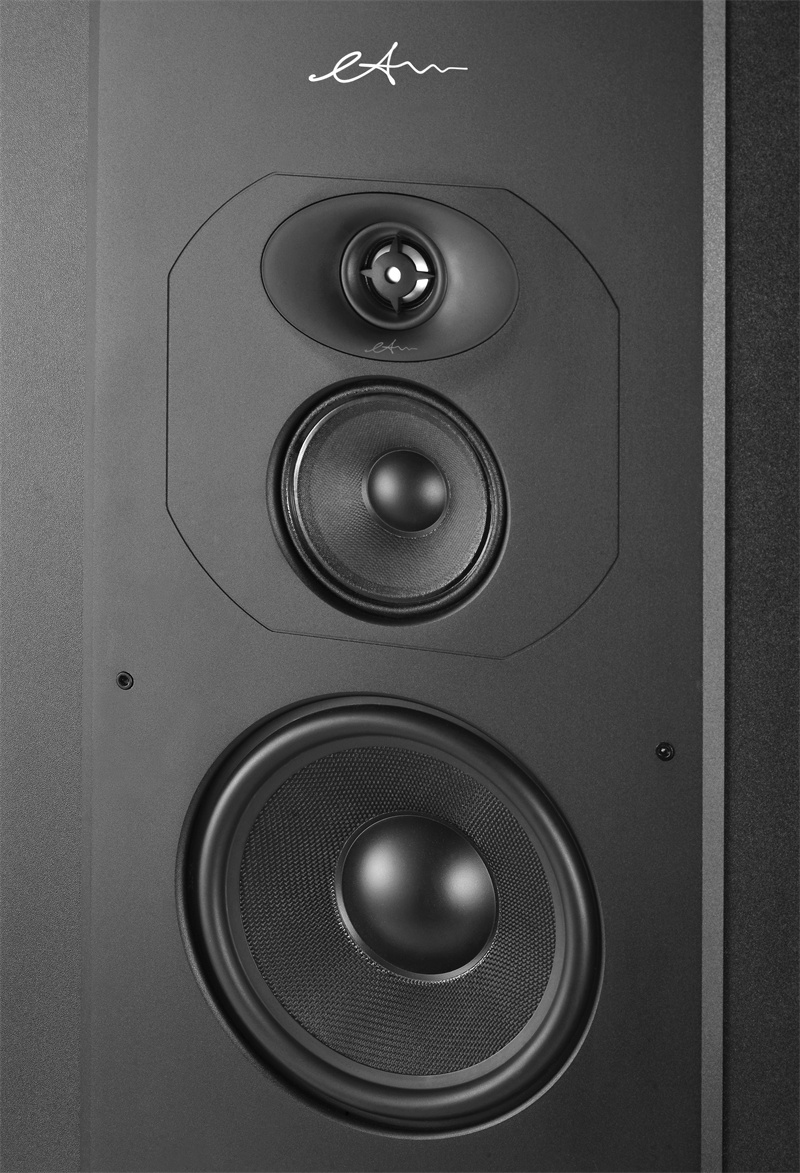

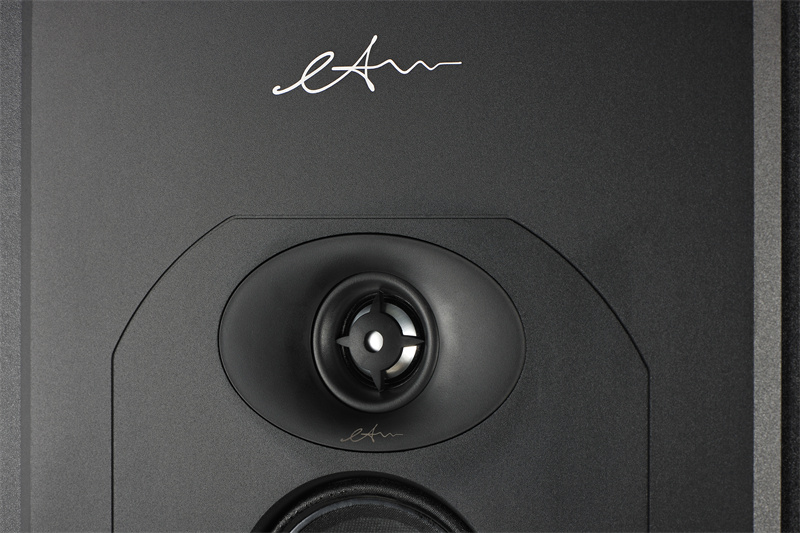

Tweeter count 1
Tweeter size 1.25" (31.75mm)
Tweeter type aluminium dome
Mid-range count 1
Mid-range size 4.5" (106.6 mm)
Mid-range type mixed paper cone

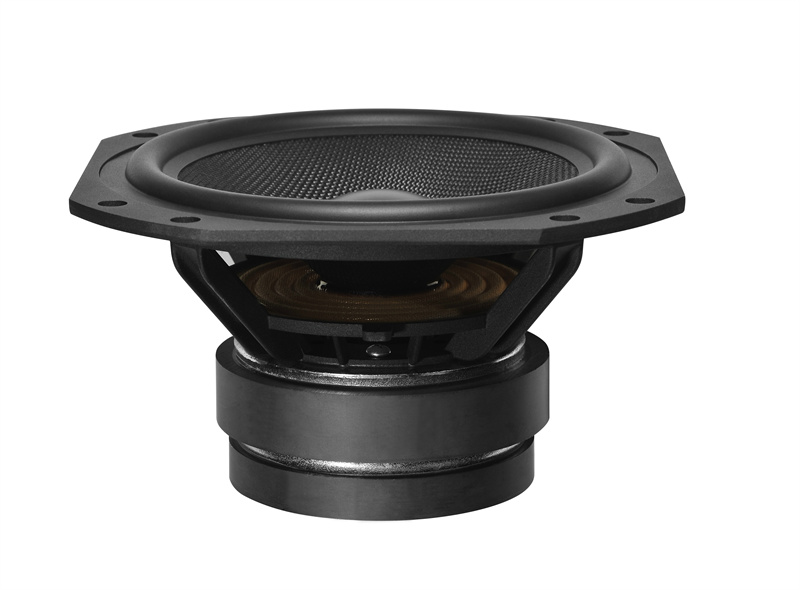

Woofer count 1
Woofer size 8" (203 mm)
Woofer type kevlar

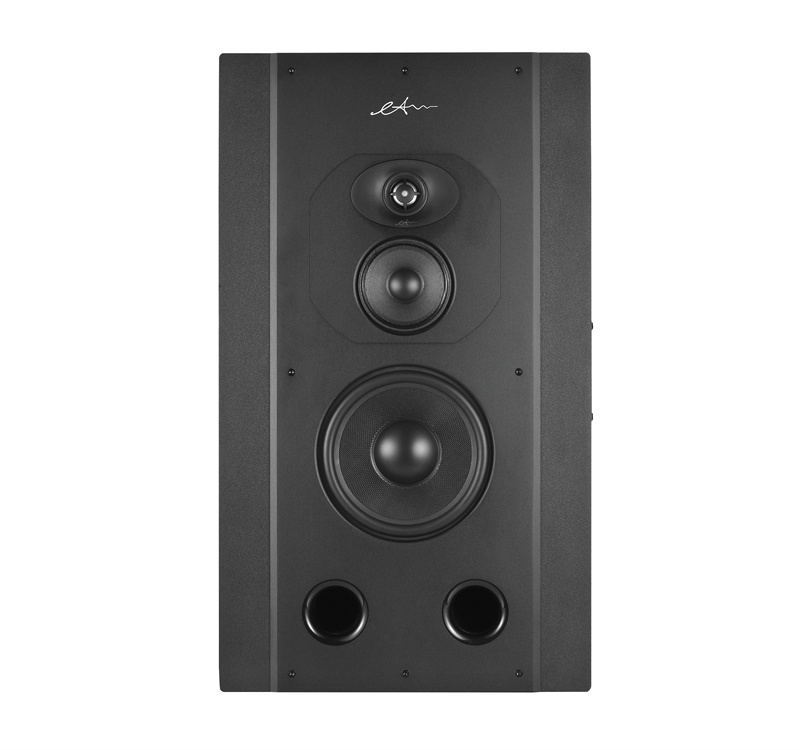

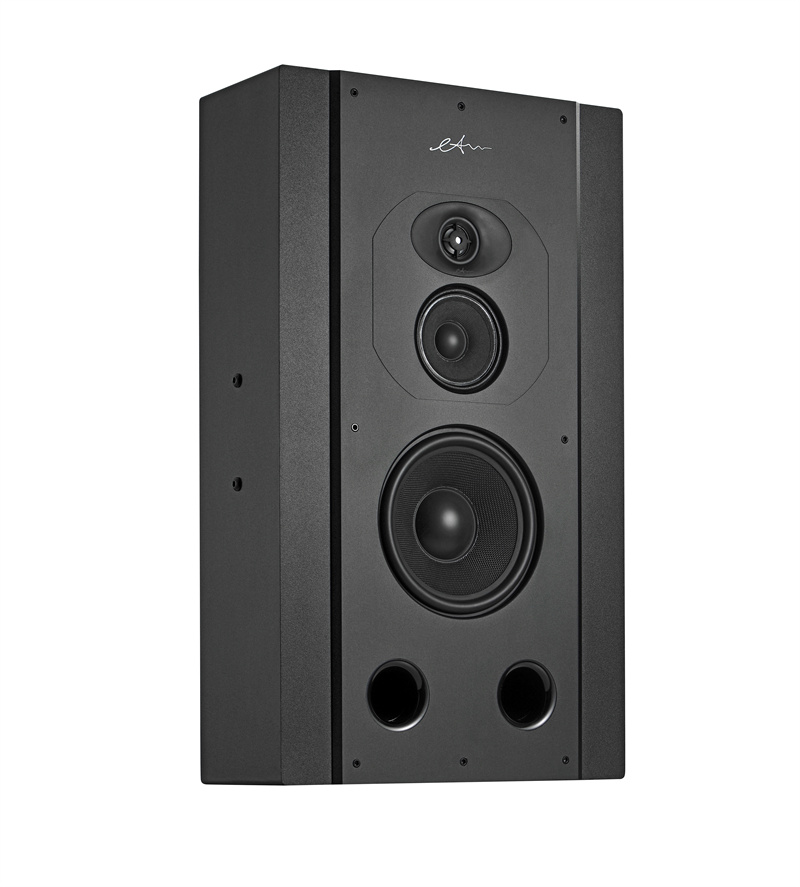

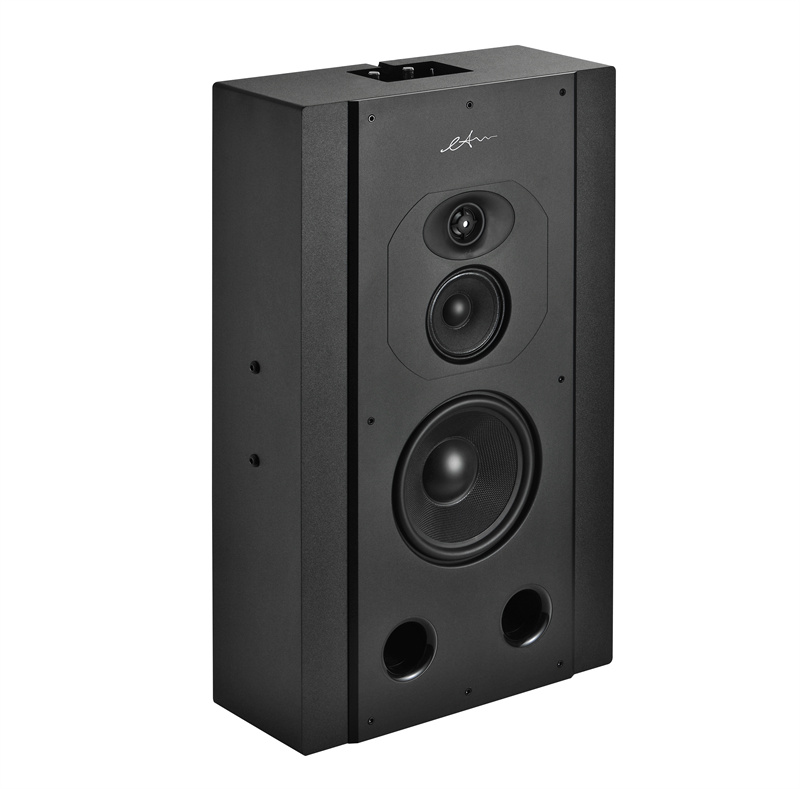

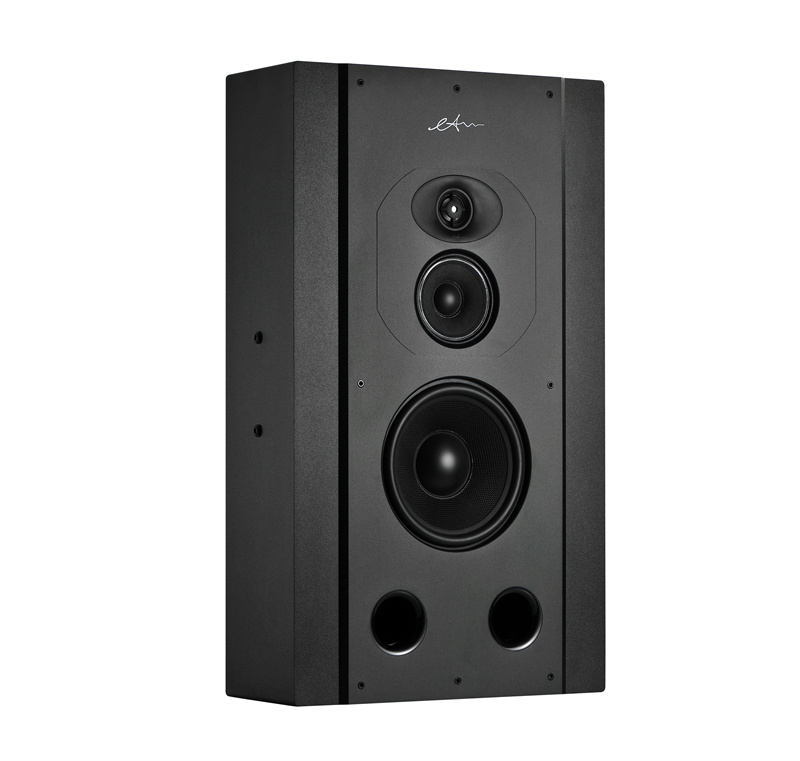

- HT 81-IW
6mm aluminum panel, compact box, vented box system.
3-way vented box system design. High end crossover with Hi-end resistors, Metallized Polypropylene film capacitors, Air core inductors of oxygen free copper wire.It will give you the best home theater and hi-fi reproductions.
The high frequency can be directed towards the listening area.
It features a Screen Compensation Switch to accommodate installation in this environment.
Suitable for multiple installation methods.The design and technology make it can be used in-wall & on-wall.
3-way vented box system design. High end crossover with Hi-end resistors, Metallized Polypropylene film capacitors, Air core inductors of oxygen free copper wire.It will give you the best home theater and hi-fi reproductions.
The high frequency can be directed towards the listening area.
It features a Screen Compensation Switch to accommodate installation in this environment.
Suitable for multiple installation methods.The design and technology make it can be used in-wall & on-wall.
- COMPONENTS
- PERFORMANCE
- DIMENSIONS
Power handing 150W RMS/ 600W Peak
Impedance (nominal) 4 ohm
Sensitivity (dB @ 2 V, 1 m) 90 dB
Frequency response 58 Hz - 20k Hz
Impedance (nominal) 4 ohm
Sensitivity (dB @ 2 V, 1 m) 90 dB
Frequency response 58 Hz - 20k Hz
Cabinet specifications (H × W × D) 680 × 395 × 161 mm
Frameless grill Non
Accessory Thickness 15 mm
Product weight (each) 18.6 kg
Shipping weight (each) 20.8 kg
Frameless grill Non
Accessory Thickness 15 mm
Product weight (each) 18.6 kg
Shipping weight (each) 20.8 kg
