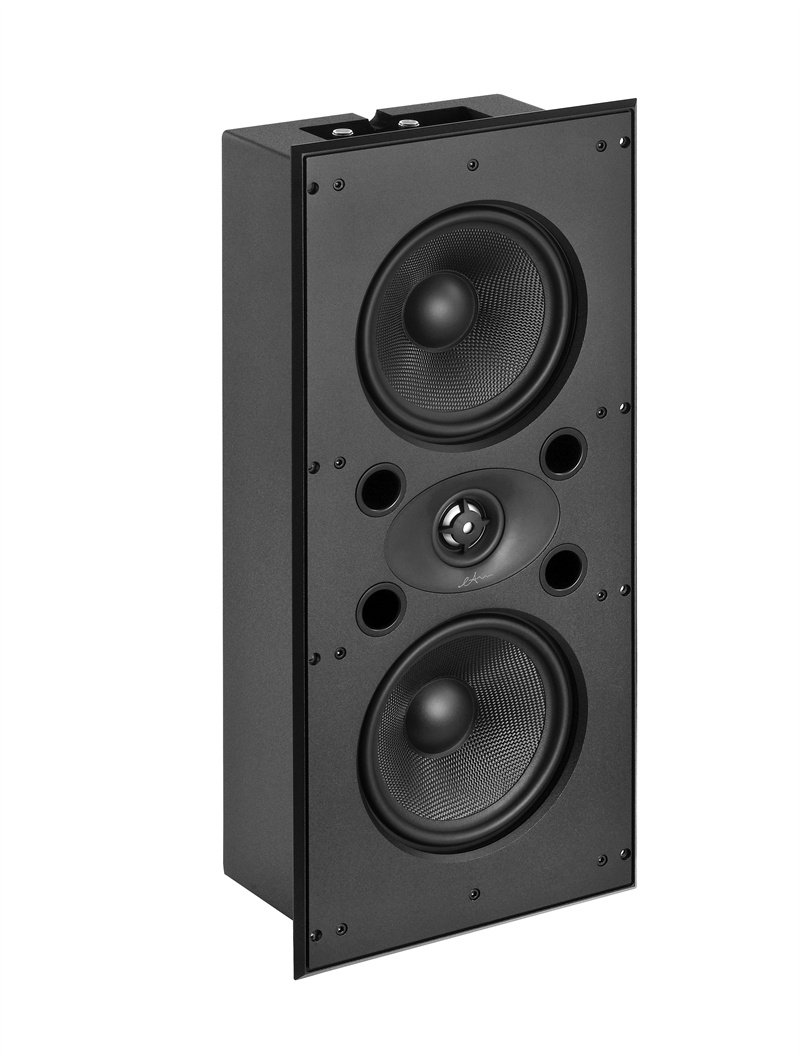

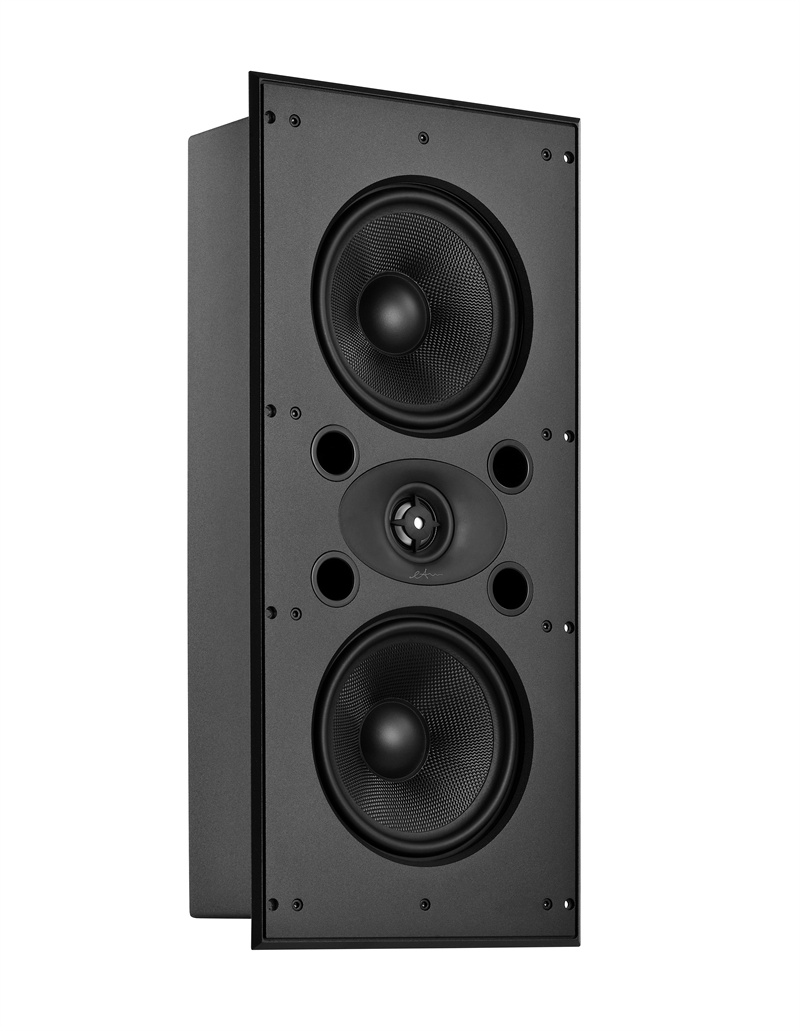

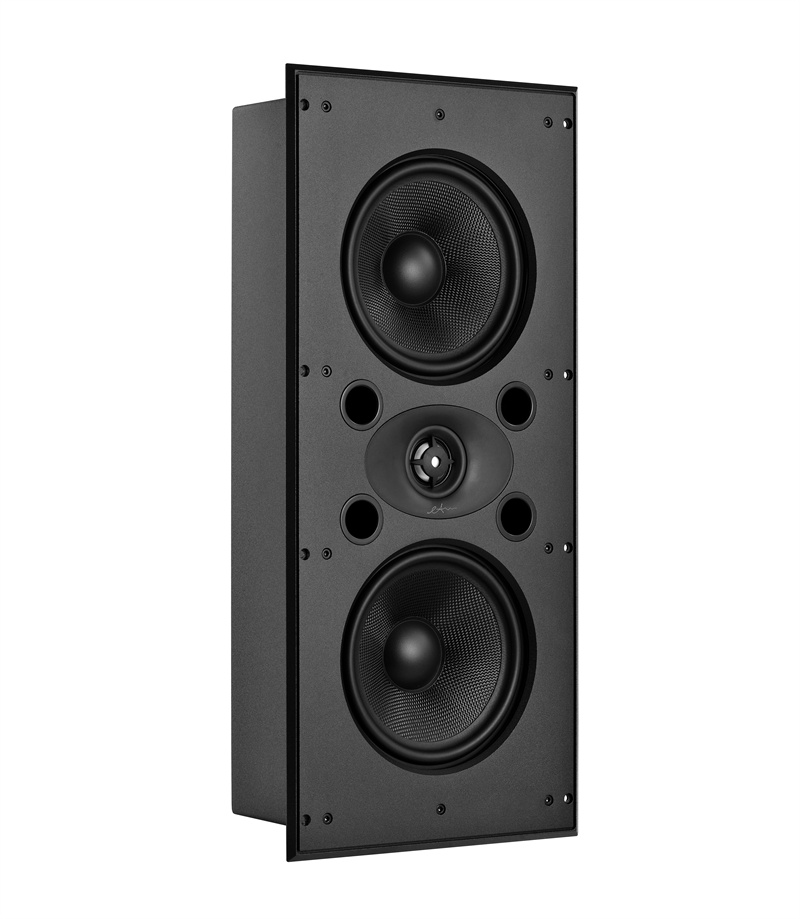

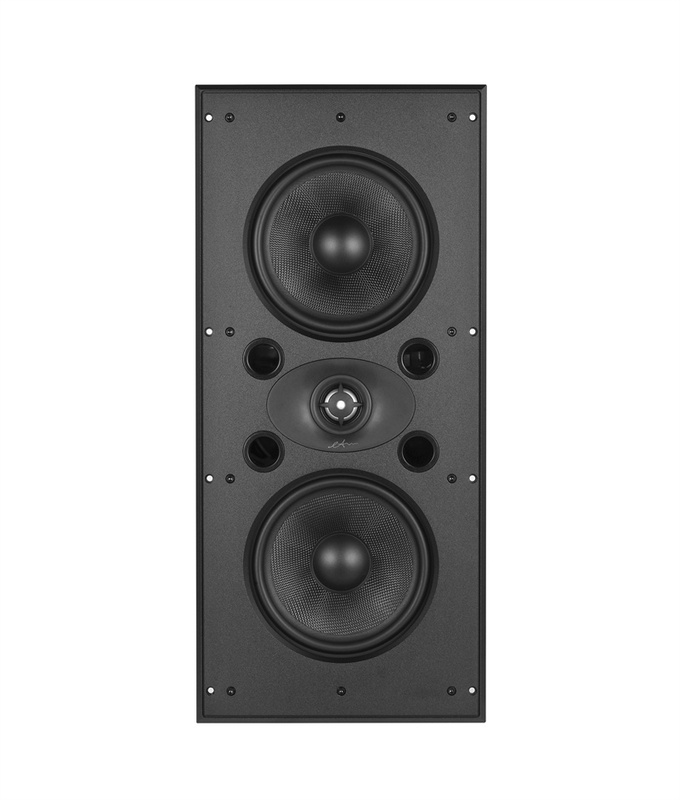

• IW 206
Thin aluminum panel, compact box, vented box system. The IW206 cabinets uses a tuned resonant port designed to enhance the woofer's sound output for improved low-frequency response and stereo imaging.

Easy to install, saves space, perfectly matches any decor.

Magnetic grilles for easy installation , Reduced Bezel Design for seamless appearance.

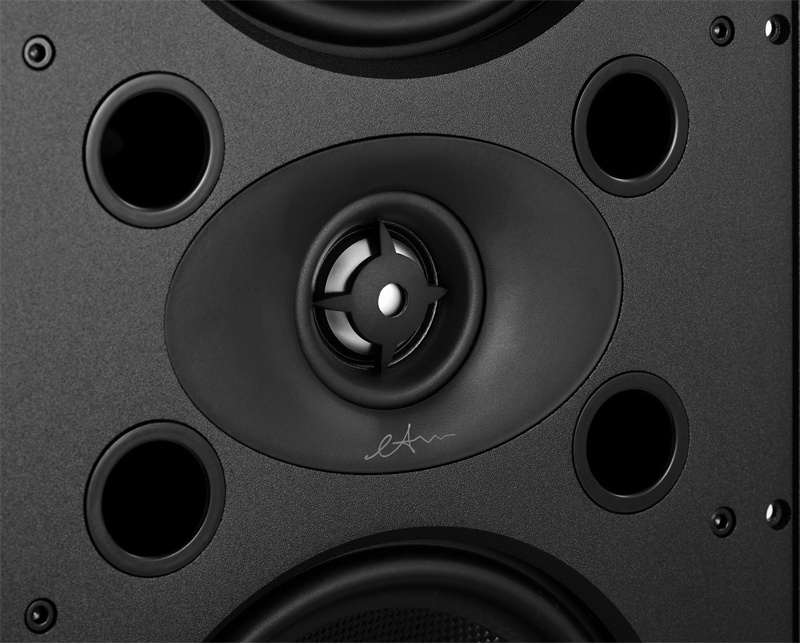

1.25"Neodymium magnet tweeter, stable magnetic field, low-mass horn diaphragm, special crossover makes sound clear and clean.

4" diameter large magnet woofers, 1.4" diameter large voice coil. High quality kevlar cones.

Dual woofers increase the sound pressure level. More extended low frequencies.

  • COMPONENTS
  • PERFORMANCE
  • DIMENSIONS
Tweeter count       1
Tweeter size　       1.25" (31.75 mm)
Tweeter type         aluminium dome
Woofer count        2
Woofer size           6.5" (165 mm)
Woofer type          kevlar
Power handing                             150W RMS / 600W Peak
Impedance (nominal)     　           8 ohm
Sensitivity (dB @ 2.83V, 1 m)  　  91 dB
Frequency response                     80 Hz - 20k Hz
Cabinet specifications (H × W × D)    498 × 227 × D156 mm
Hole cut out (H × W)　　　　　　　   465 × 193 mm
Frameless grill dimensions (H × W)    488 × 217 mm
Mounting depth                                  151 mm
Product weight (each)                          7.8 kg
Shipping weight (each)           　          9.6 kg
Grill material                                         Metal Perf-Frameless
