Tweeter count 2
Tweeter size 1.25" (31.75 mm)
Tweeter type aluminium dome
Woofer count 1
Woofer size 8" (203 mm)
Woofer type paper cone

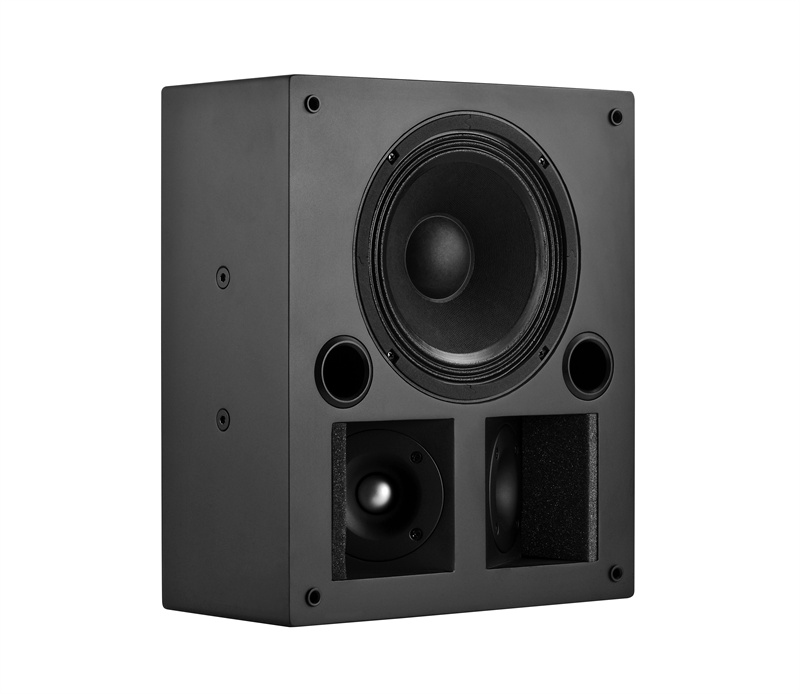

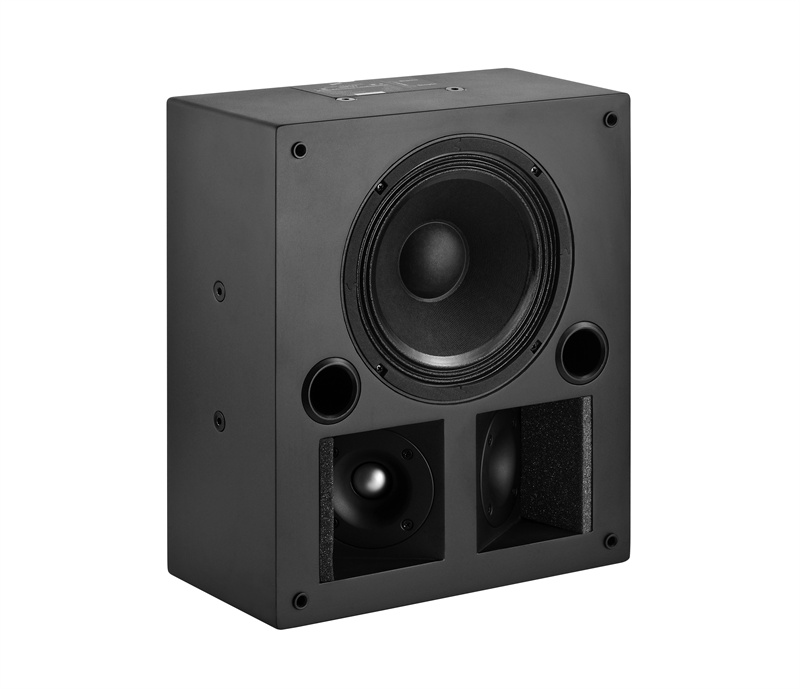

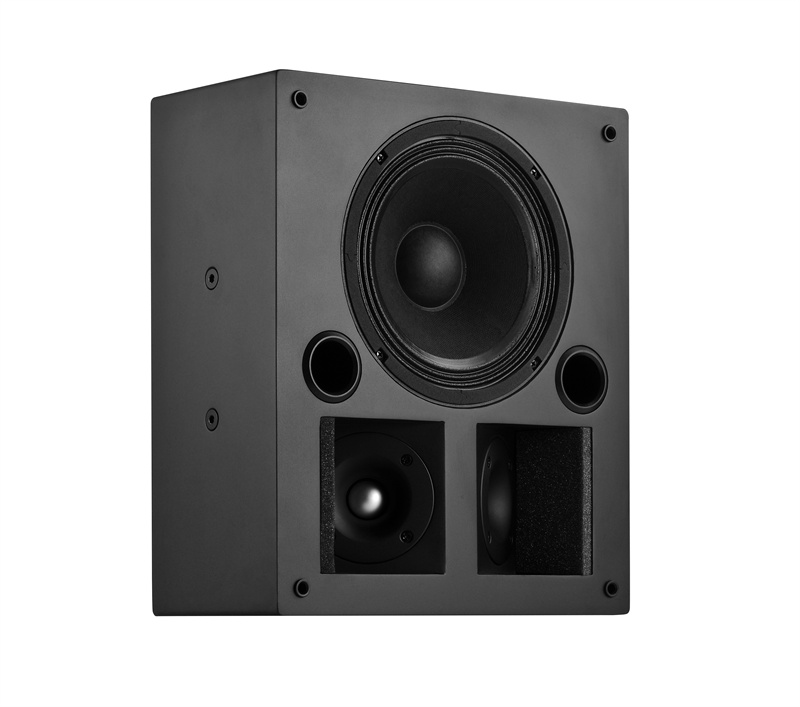

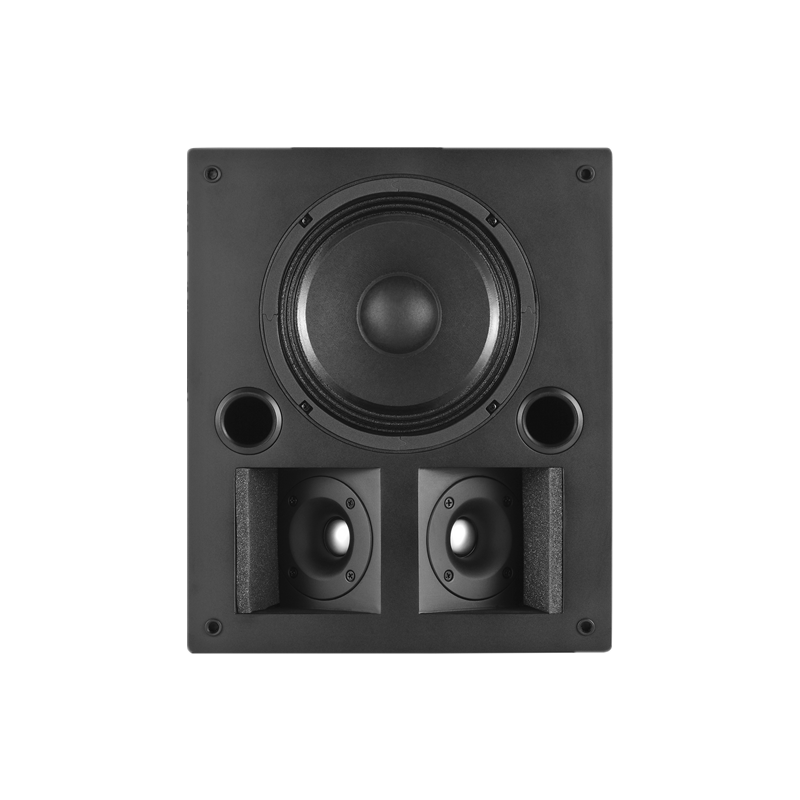

- HTS 1
MDF cabinet,vented box system design, crossover with Hi-end resistors, METALLIZED POLYPROPYLENE film capacitors, oxygen free copper inductors.
The HTS1 Surround was designed to provide an enveloping surround field when used with better A/V receivers in moderately sized rooms, with both analog and digital sources.
The HTS1 Surround can dipole or bipole switchable.The HTS1 can be installed behind a perforated video screen or cabinet grille cloth in most installations. It features a Screen Compensation Switch to accommodate installation in this environment
Mixed foam surrounded woofer, double 1.4" voice coil and magnets, aluminium frame.
The HTS1 Surround was designed to provide an enveloping surround field when used with better A/V receivers in moderately sized rooms, with both analog and digital sources.
The HTS1 Surround can dipole or bipole switchable.The HTS1 can be installed behind a perforated video screen or cabinet grille cloth in most installations. It features a Screen Compensation Switch to accommodate installation in this environment
Mixed foam surrounded woofer, double 1.4" voice coil and magnets, aluminium frame.
- COMPONENTS
- PERFORMANCE
- DIMENSIONS
Power handing 150W RMS/ 600W Peak
Impedance (nominal) 4 ohm
Sensitivity (dB @ 2 V, 1 m) 91 dB
Frequency response 80 Hz - 20k Hz
Impedance (nominal) 4 ohm
Sensitivity (dB @ 2 V, 1 m) 91 dB
Frequency response 80 Hz - 20k Hz
Cabinet specifications (H × W × D) 380 × 320 × 178 mm
Frameless grill dimensions (H × W × D) 470 × 410 × 280 mm
Product weight (each) 8.6 kg
Shipping weight (each) 9.9 kg
Grill material Cloth grille with pin/cup retention
Frameless grill dimensions (H × W × D) 470 × 410 × 280 mm
Product weight (each) 8.6 kg
Shipping weight (each) 9.9 kg
Grill material Cloth grille with pin/cup retention
