Tweeter count 1
Tweeter size 1.25" (31.75mm)
Tweeter type aluminium dome
Mid-range count 1
Mid-range size 4.5" (106.6 mm)
Mid-range type mixed paper cone

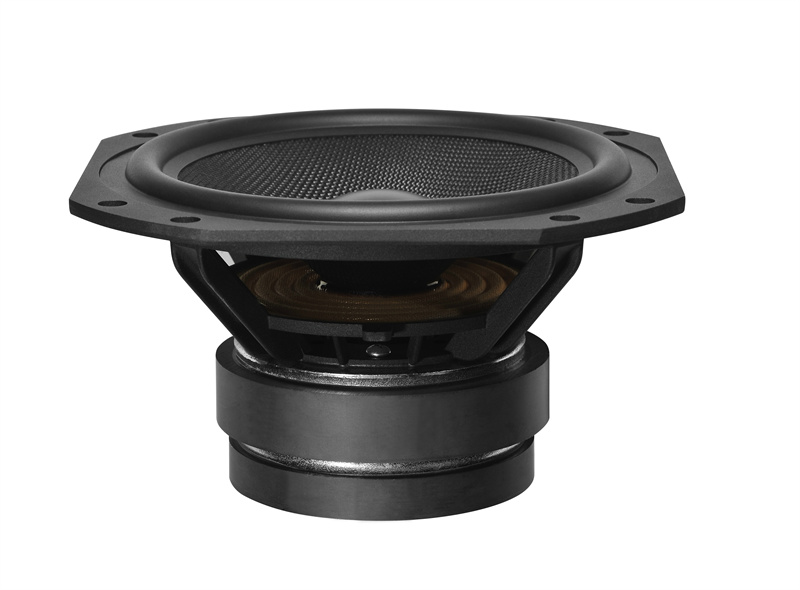

Woofer count 2
Woofer size 8" (203 mm)

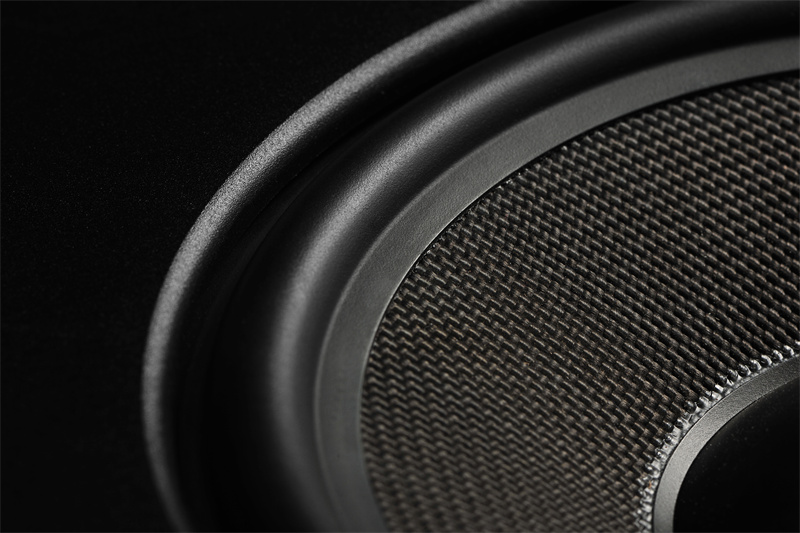

Woofer type kevlar

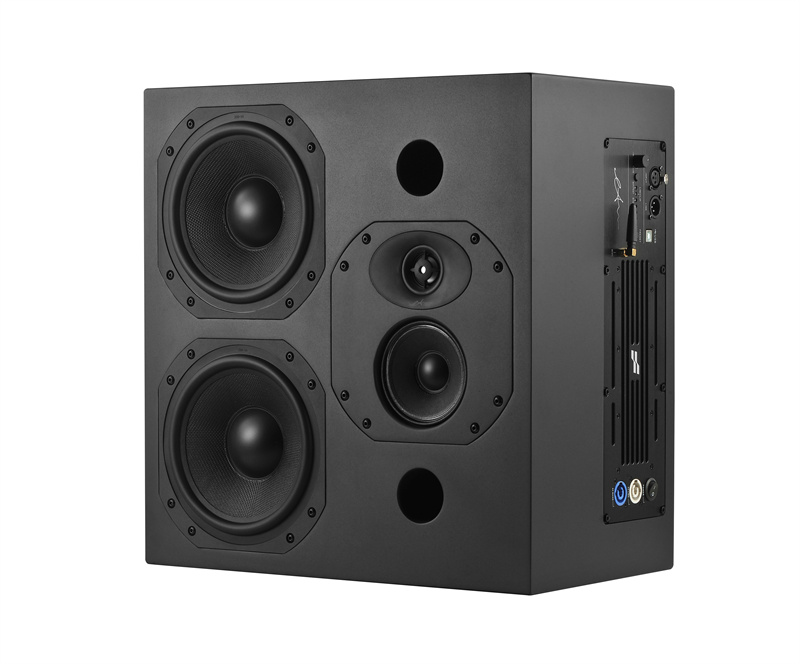

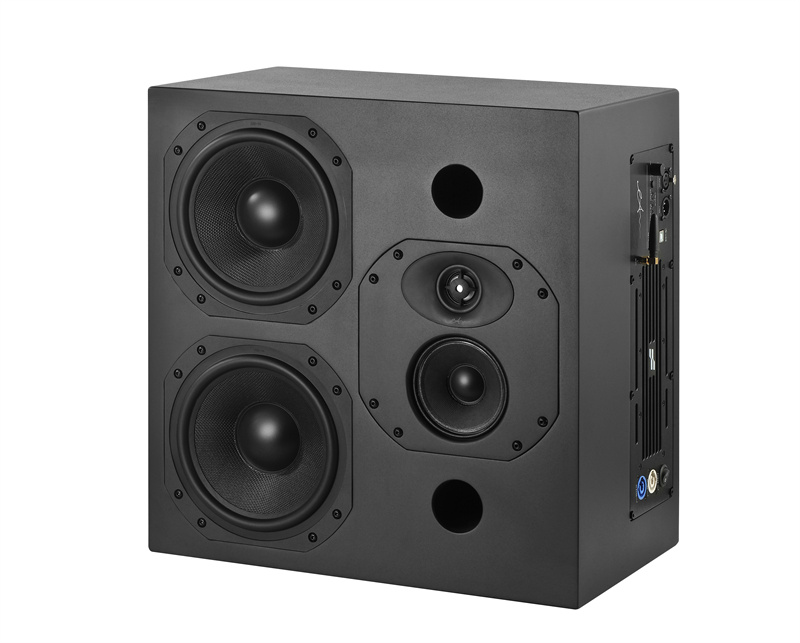

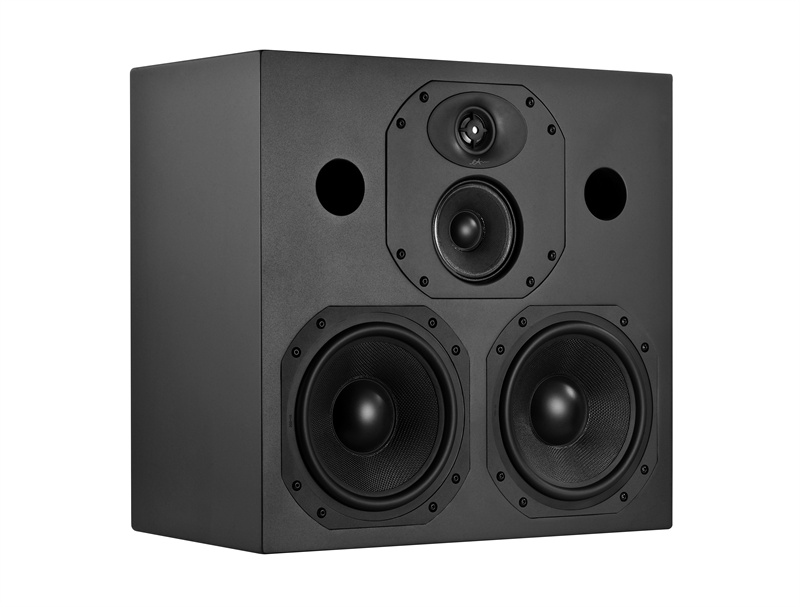

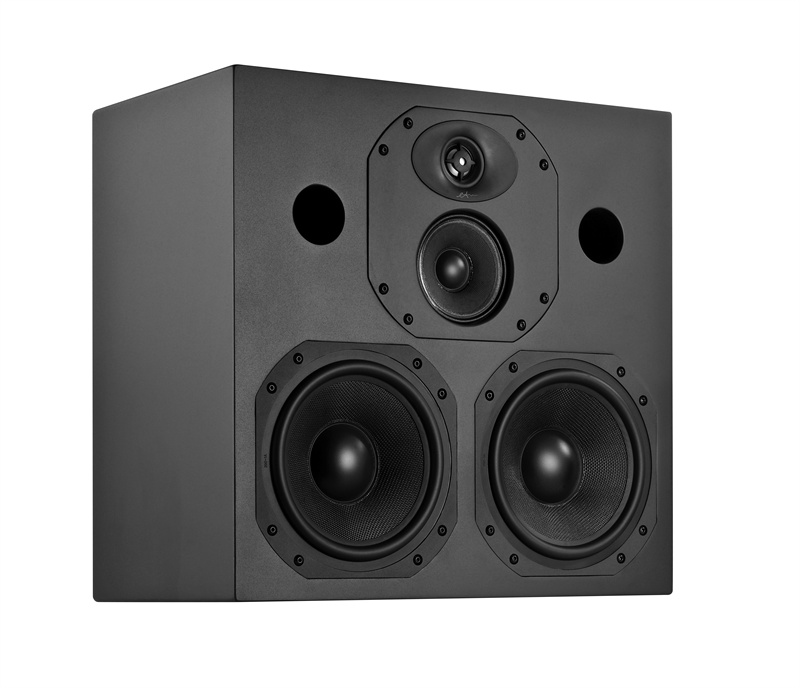

- HT 82P
Active Speaker,280W low channel+110W high channel.
Better frequency and phase response.In powered monitors,internal amplifiers are precision-matched to drivers,delivering optimal power at all times for cleaner sound.
Active loudspeakers have very short internal cables, amps inside can more effectively dampen driver mechanical motion, which leads to better sonic accuracy and tighter, crisper transients.

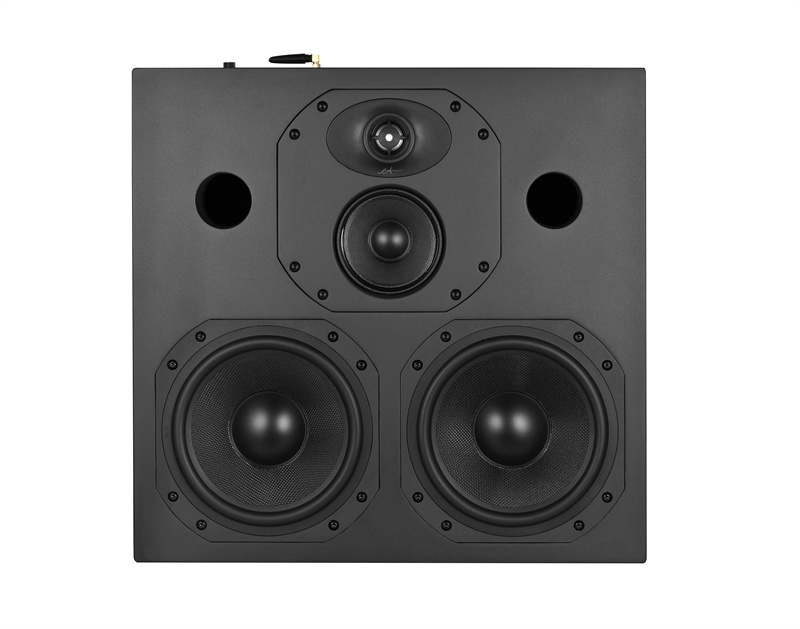

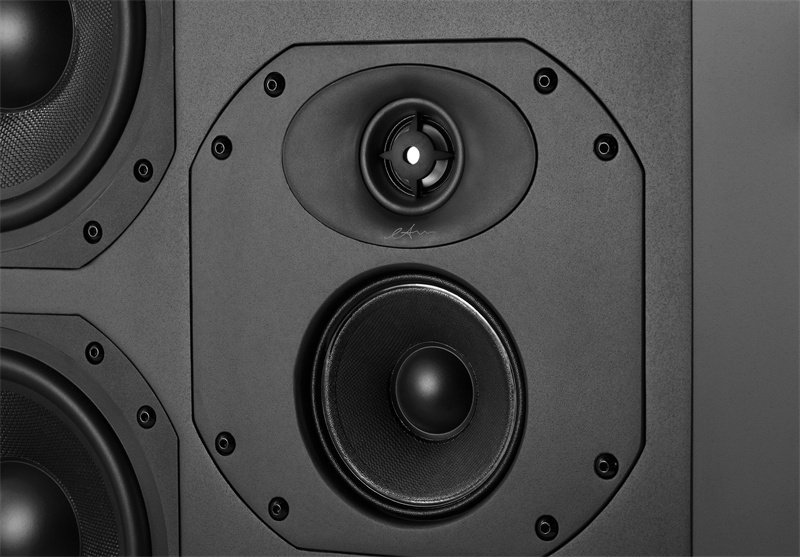

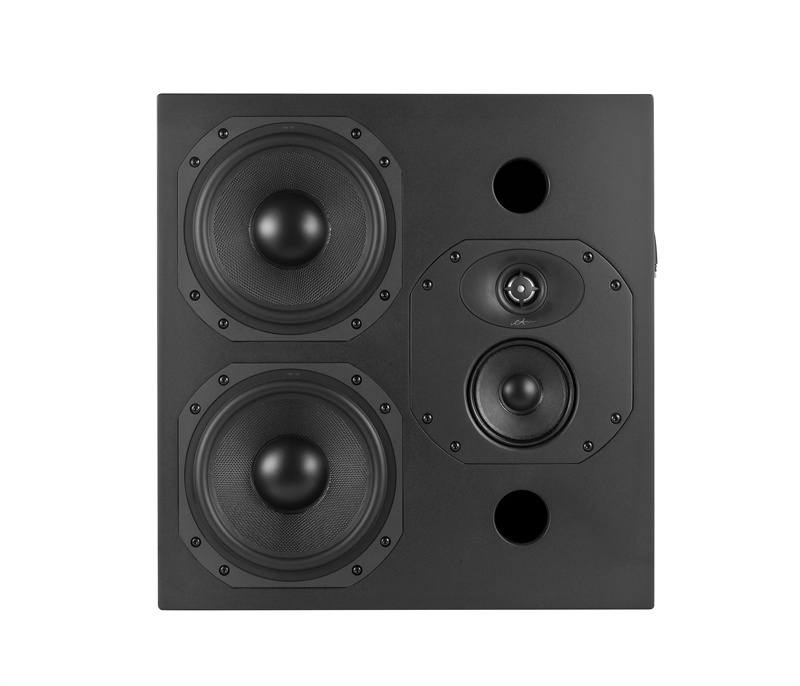

The HT82’s midrange/tweeter baffle can rotate 360 degrees for horizontal or vertical placement in cabinetry—maintaining the proper sonic vertical alignment of the mid-range and tweeter. The baffle may also be angled for more accurate imaging when the speaker is far off-axis.
Over Current Protection，Over Load Protection,DC Protection,High Frequency Protection,High Temperature Protection,Under/Over Voltage Protection,Power Limiter.

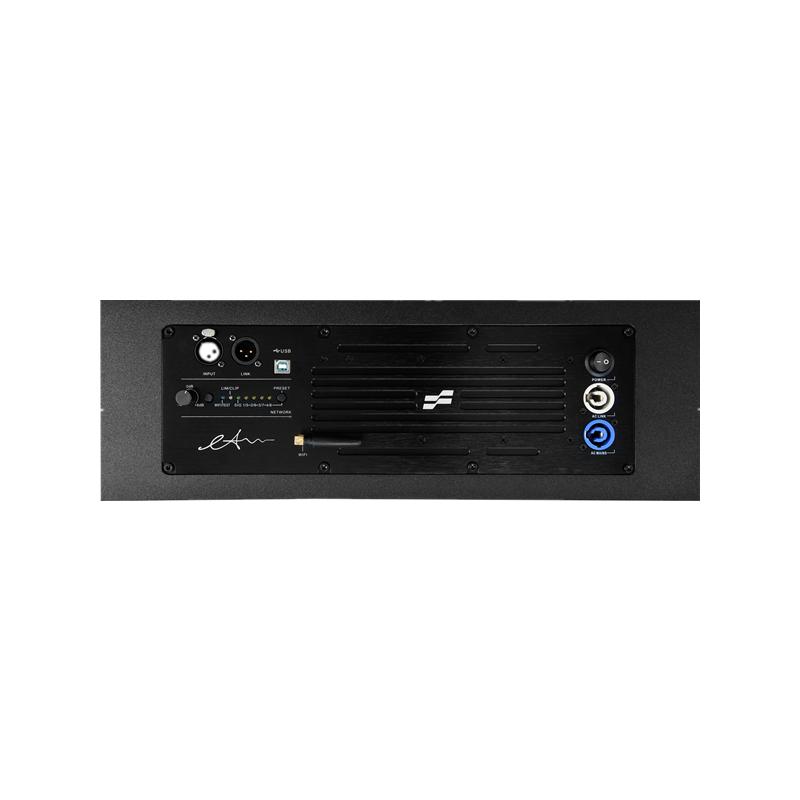

Power Connector：Neutrik powerCON 20A(A/B),Analog Input Connector：Neutrik Male/Female XLR Connector,Communication Connector： USB-B
Better frequency and phase response.In powered monitors,internal amplifiers are precision-matched to drivers,delivering optimal power at all times for cleaner sound.
Active loudspeakers have very short internal cables, amps inside can more effectively dampen driver mechanical motion, which leads to better sonic accuracy and tighter, crisper transients.
The HT82’s midrange/tweeter baffle can rotate 360 degrees for horizontal or vertical placement in cabinetry—maintaining the proper sonic vertical alignment of the mid-range and tweeter. The baffle may also be angled for more accurate imaging when the speaker is far off-axis.
Over Current Protection，Over Load Protection,DC Protection,High Frequency Protection,High Temperature Protection,Under/Over Voltage Protection,Power Limiter.
Power Connector：Neutrik powerCON 20A(A/B),Analog Input Connector：Neutrik Male/Female XLR Connector,Communication Connector： USB-B
- COMPONENTS
- PERFORMANCE
- DIMENSIONS
Amplifier Type Class D
Input Senstivity +15 dBu
Input Impedance Balanced / Unbalanced 47 kΩ / 26 kΩ
Input Connector Male/Female XLR Connector
Power Output： 280 W low channel 110 W high channel
THD+N ≦0.01%
Protection System Over Current Protection,Over Load Protection,DC Protection,High Frequency Protection
High Temperature Protection,Under/Over Voltage Protection,Power Limite
AC Power Universal mains regulated power supply with PFC,85V~265V，45Hz~65Hz
Maximum SPL 122 dB
Frequency response 58 Hz - 20 kHz
Input Senstivity +15 dBu
Input Impedance Balanced / Unbalanced 47 kΩ / 26 kΩ
Input Connector Male/Female XLR Connector
Power Output： 280 W low channel 110 W high channel
THD+N ≦0.01%
Protection System Over Current Protection,Over Load Protection,DC Protection,High Frequency Protection
High Temperature Protection,Under/Over Voltage Protection,Power Limite
AC Power Universal mains regulated power supply with PFC,85V~265V，45Hz~65Hz
Maximum SPL 122 dB
Frequency response 58 Hz - 20 kHz
Cabinet specifications (H × W × D) 476 × 460 × 276 mm
Frameless grill dimensions (H × W× D) 476 × 460 × 15 mm
Product weight (each) 19.4 kg
Shipping weight (each) 21.2 kg
Grill material Flexible Removable Magnetic Grille
Frameless grill dimensions (H × W× D) 476 × 460 × 15 mm
Product weight (each) 19.4 kg
Shipping weight (each) 21.2 kg
Grill material Flexible Removable Magnetic Grille
