Tweeter count 1
Tweeter size 1.75" (45 mm)
Tweeter type compression
Woofer count 1
Woofer size 12" (305 mm)
Woofer type paper cone

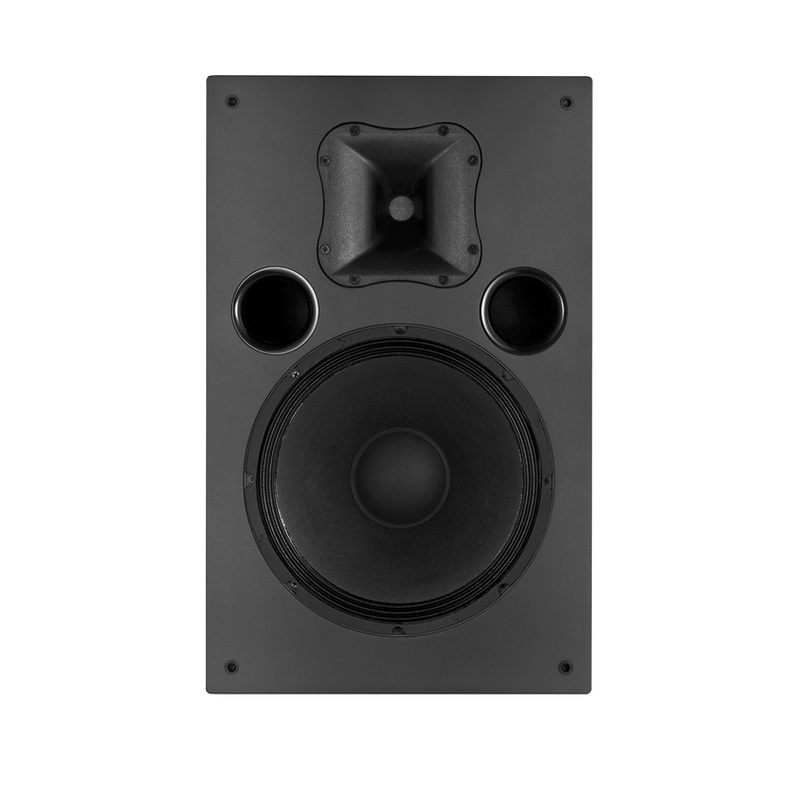

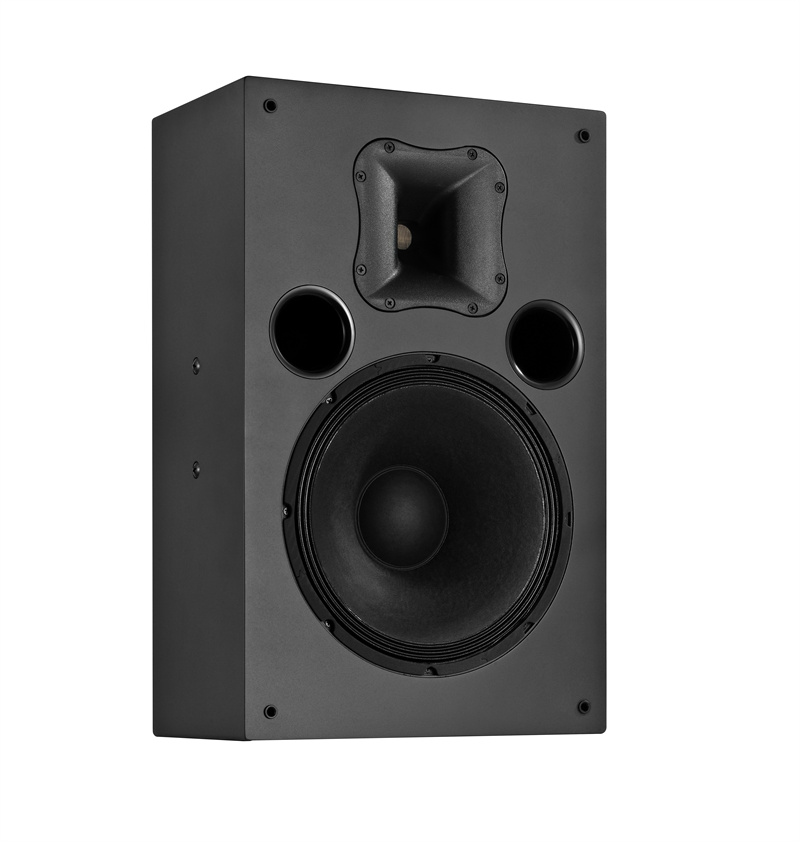

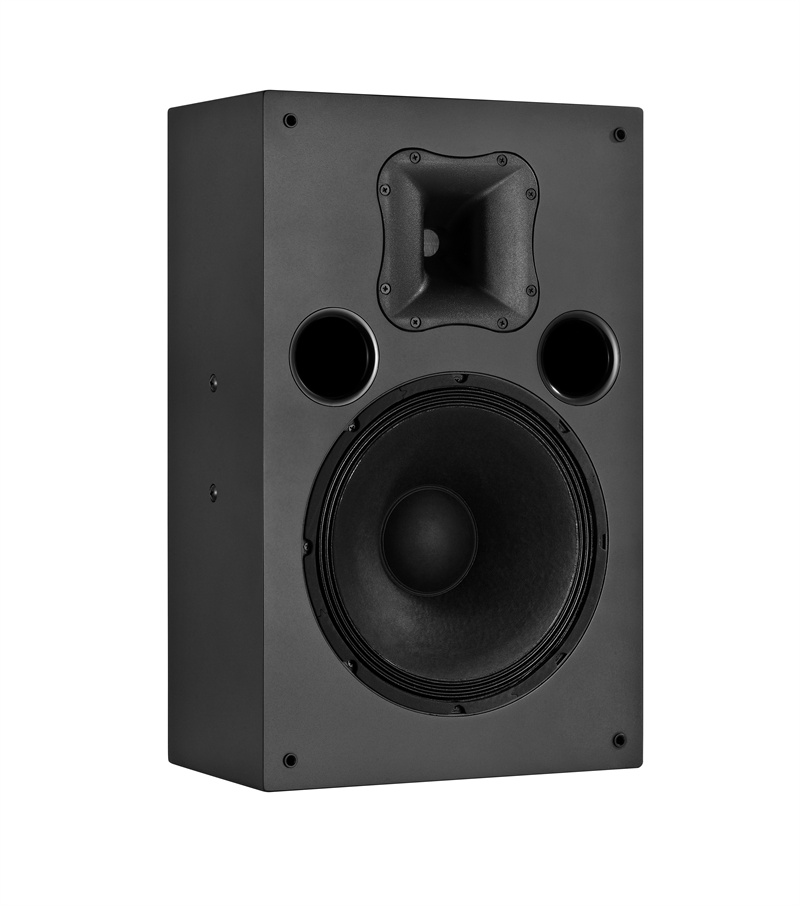

- CM 12T
Cabinets are 2-way vented-box system in a compact design. Easy-mount installation, On-wall and In-wall.
The woofer design includes a large magnet, and a large voice coil with heavy-gauge wire. The rigid and specially coated cone provides high output and realistic dynamics.
1.75"compression Tweeter ,Composite material dome provides more natural sound. The unique lotus leaf shape horn provides a wider sound stage.
The CM12T can be installed behind a perforated video screen or cabinet grille cloth in most installations. It features a Screen Compensation Switch to accommodate installation in this environment.
The woofer design includes a large magnet, and a large voice coil with heavy-gauge wire. The rigid and specially coated cone provides high output and realistic dynamics.
1.75"compression Tweeter ,Composite material dome provides more natural sound. The unique lotus leaf shape horn provides a wider sound stage.
The CM12T can be installed behind a perforated video screen or cabinet grille cloth in most installations. It features a Screen Compensation Switch to accommodate installation in this environment.
- COMPONENTS
- PERFORMANCE
- DIMENSIONS
Power handing 300W RMS / 1200W Peak
Impedance (nominal) 8 ohm
Sensitivity (dB @ 2.83V, 1 m) 95 dB
Nominal Coverage 60°(V) × 90°(H)
Frequency response 55 Hz - 20 kHz
Impedance (nominal) 8 ohm
Sensitivity (dB @ 2.83V, 1 m) 95 dB
Nominal Coverage 60°(V) × 90°(H)
Frequency response 55 Hz - 20 kHz
Cabinet specifications (H × W × D) 620 × 391 × 235 mm
Frameless grill dimensions (H × W× D) 620 × 391 × 15 mm
Product weight (each) 22.1 kg
Shipping weight (each) 24.2 kg
Grill material Cloth grille with pin/cup retention
Frameless grill dimensions (H × W× D) 620 × 391 × 15 mm
Product weight (each) 22.1 kg
Shipping weight (each) 24.2 kg
Grill material Cloth grille with pin/cup retention
