• C 12

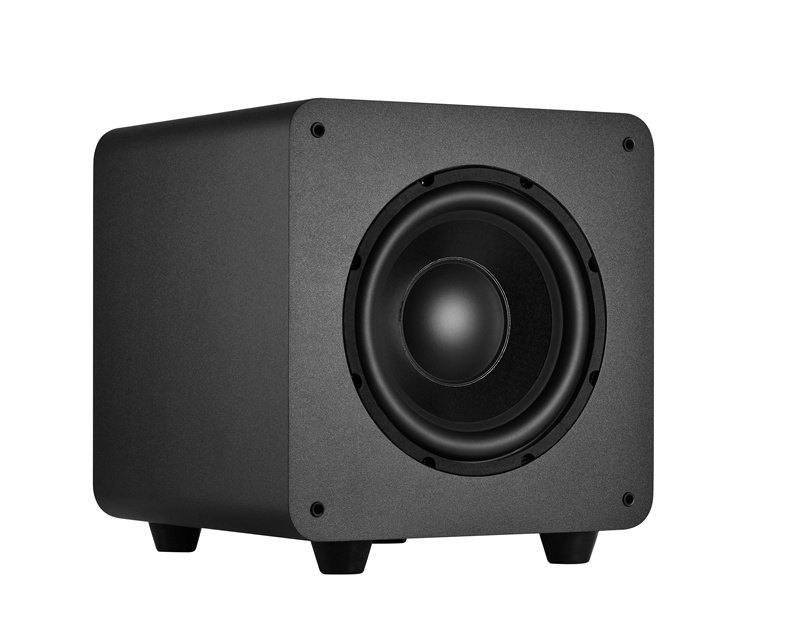

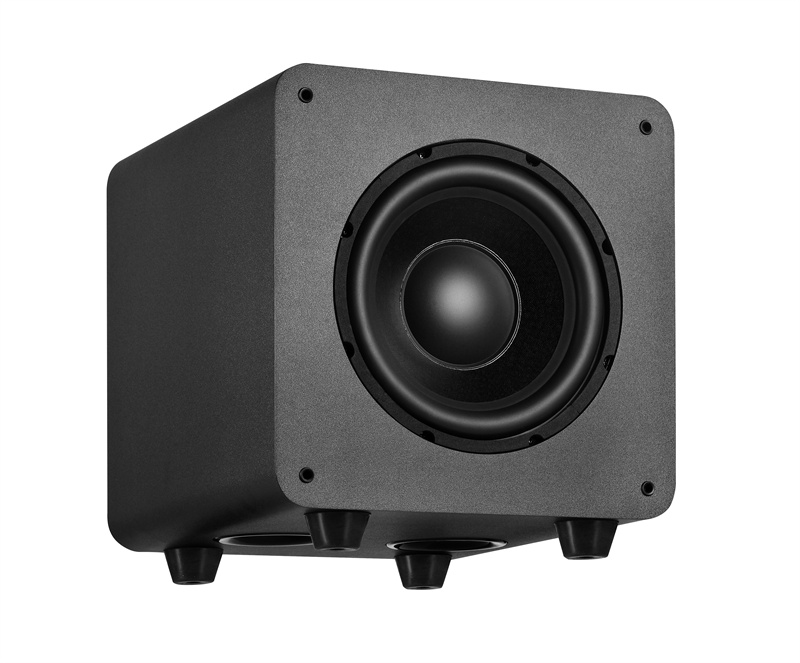

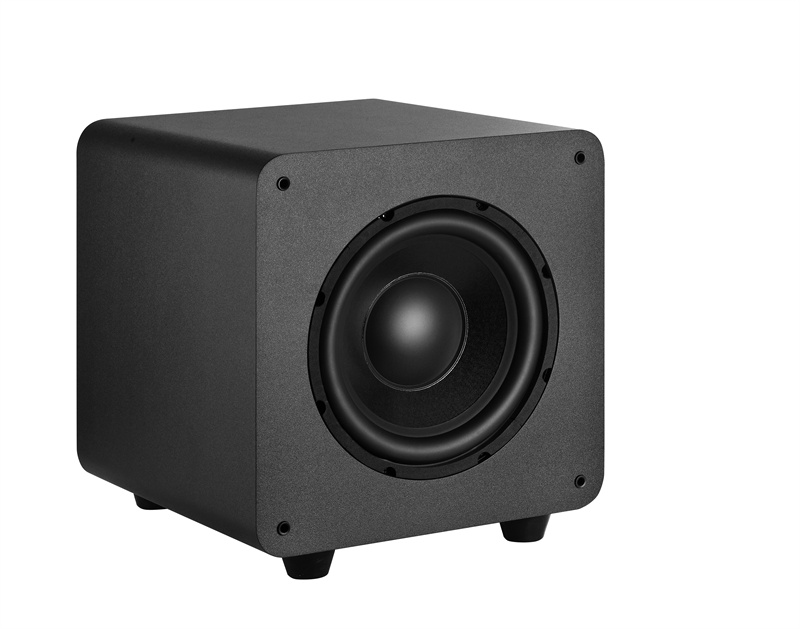

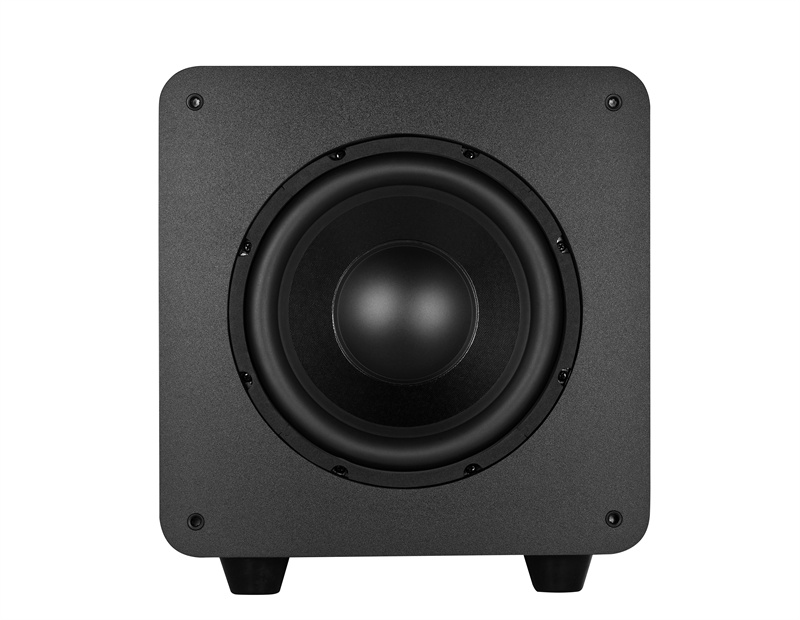

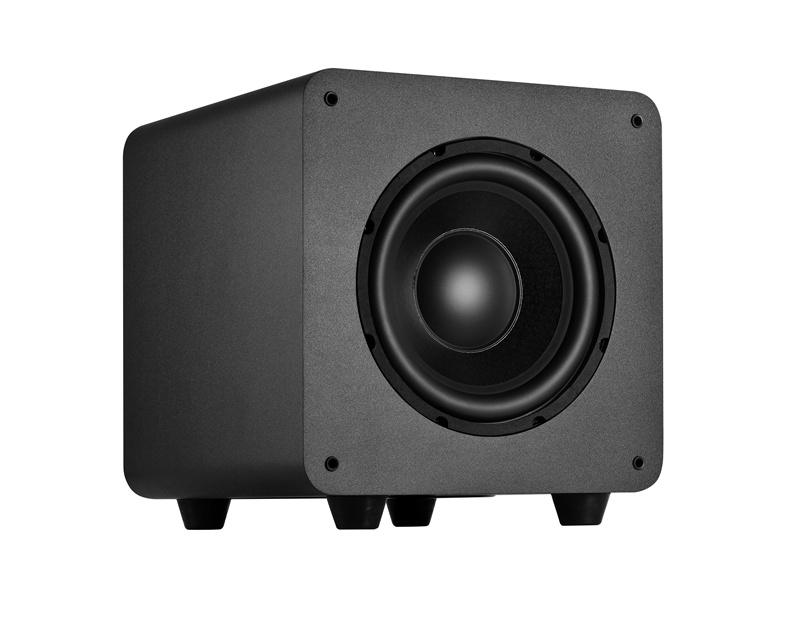

The grill is removable, the vented box system design is 1" MDF. The port is designed with a flared horn shape to reduce the noise produced by the air flow.

In order to extend the low frequency response, The precise length tuned port provides deep, extended low frequency response.

Built in 300W, class D amplifier. Full energy storage, and restores freely whena large dynamic signal is applied. The volume and frequency crossover point can be adjusted continuously, and a phase 0 degree /180 degree switch is provided. High and low level input, 0.5W standby low power consumption without signal automatic standby mode, effective management of power amplifier.

The 12" driver uses a high density composite cone, and the surface is coated in a special process to enhance the rigidity and ensure the cone movement without distortion.
  • COMPONENTS
  • PERFORMANCE
  • DIMENSIONS
System                     Vented
Woofer count          1
Woofer size             12" (305 mm)
Woofer type            Coated paper cone
Amplifer type                              Class D with Analog Preamp Stage
Power handing                            300W RMS / 600W Peak
Features                                       Volume, Lowpass, Phase, Auto Power
Phase                                           0-180 degrees adjustable
Frequency response                    28 Hz - 140 Hz
Cabinet specifications (H × W × D) 　         490 × 395 × 438 mm
Frameless grill dimensions (H × W × D)      440 × 395 × 15 mm
Product weight (each)                                  19.4 kg
Shipping weight (each)                  　           22.7 kg
Grill material                                                 Cloth grille with pin/cup retention
