Tweeter count 1
Tweeter size 1.25" (31.75 mm)
Tweeter type aluminium dome
Woofer count 1
Woofer size 6.5" (165 mm)
Woofer type kevlar

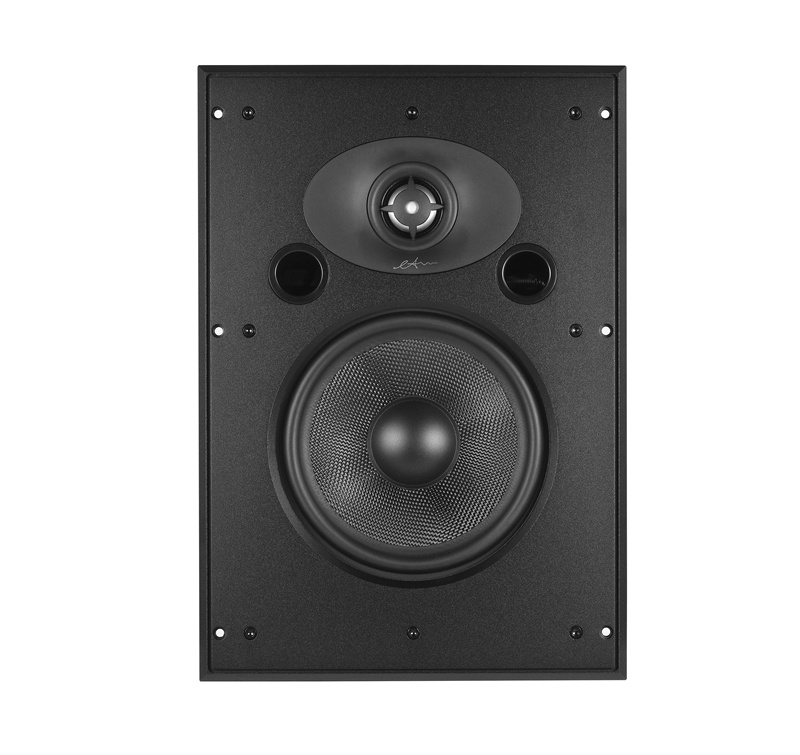

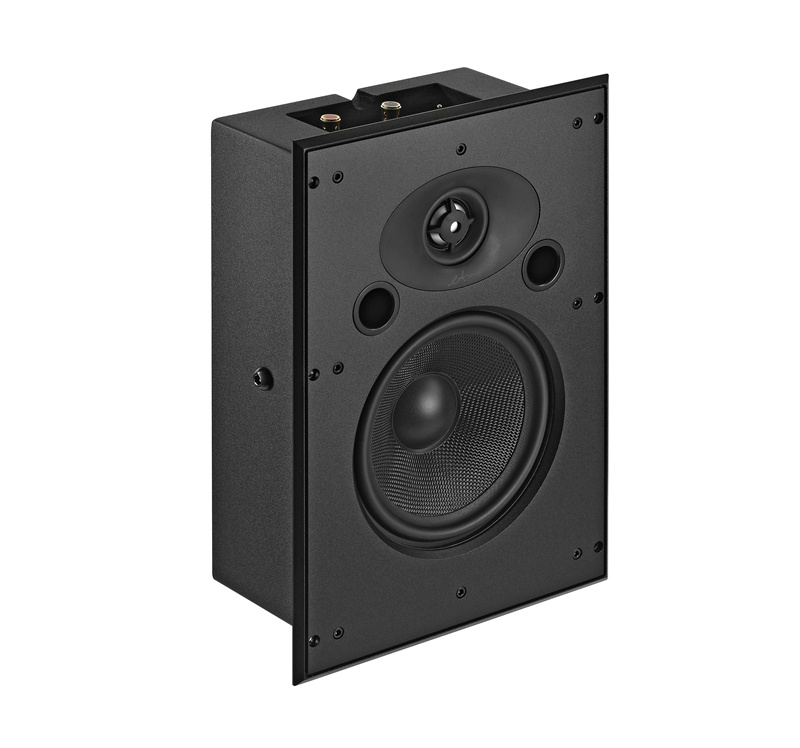

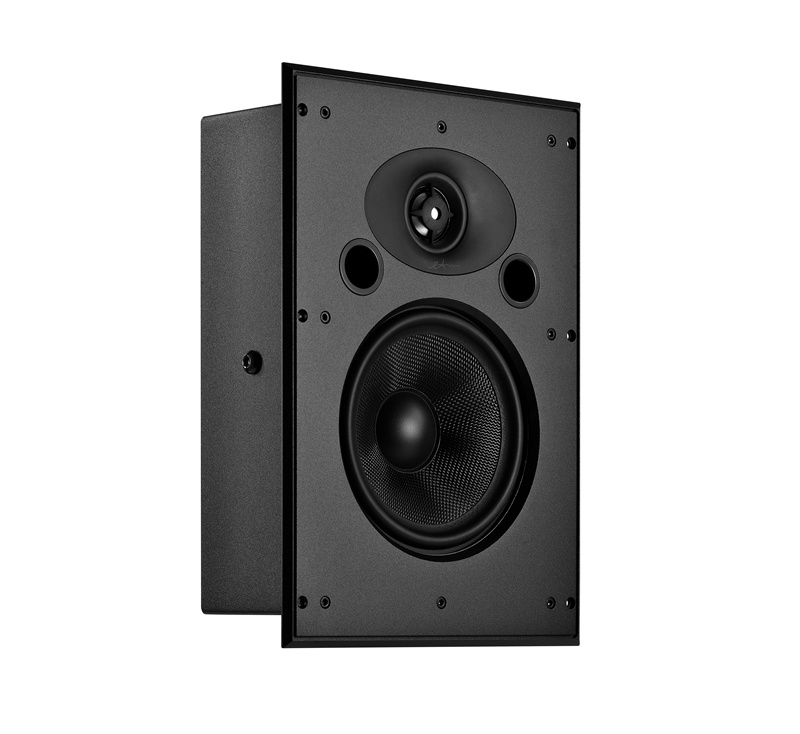

- IW 106
Thin aluminum panel, compact box, vented box system. The IW106 cabinets uses a tuned resonant port designed to enhance the woofer's sound output for improved low-frequency response and stereo imaging.
Easy to install, saves space, perfectly matches any decor.
Magnetic grilles for easy installation , Reduced Bezel Design for seamless appearance.
1.25"Neodymium magnet tweeter, stable magnetic field, low-mass horn diaphragm, special crossover makes sound clear and clean.
4" diameter large magnet woofer, 1.4" diameter large voice coil. High quality kevlar cone.
Easy to install, saves space, perfectly matches any decor.
Magnetic grilles for easy installation , Reduced Bezel Design for seamless appearance.
1.25"Neodymium magnet tweeter, stable magnetic field, low-mass horn diaphragm, special crossover makes sound clear and clean.
4" diameter large magnet woofer, 1.4" diameter large voice coil. High quality kevlar cone.
- COMPONENTS
- PERFORMANCE
- DIMENSIONS
Power handing 100W RMS / 400W Peak
Impedance (nominal) 4 ohm
Sensitivity (dB @ 2.83 V, 1 m) 90 dB
Frequency response 100 Hz - 20k Hz
Impedance (nominal) 4 ohm
Sensitivity (dB @ 2.83 V, 1 m) 90 dB
Frequency response 100 Hz - 20k Hz
Cabinet specifications (H × W × D) 327 × 227 × 105 mm
Hole cut out (H × W) 293 × 193 mmFrameless grill dimensions (H × W) 317 × 217 mm
Mounting depth 100 mm
Product weight (each) 4.45 kg
Shipping weight (each) 5.45 kg
Grill material Metal Perf-Frameless
