Tweeter count 1
Tweeter size 1.25" (31.75 mm)
Tweeter type aluminium dome
Mid-range count 1
Mid-range size 4.5" (106.6 mm)
Mid-range type mixed paper cone
Woofer count 2
Woofer size 8" (203 mm)

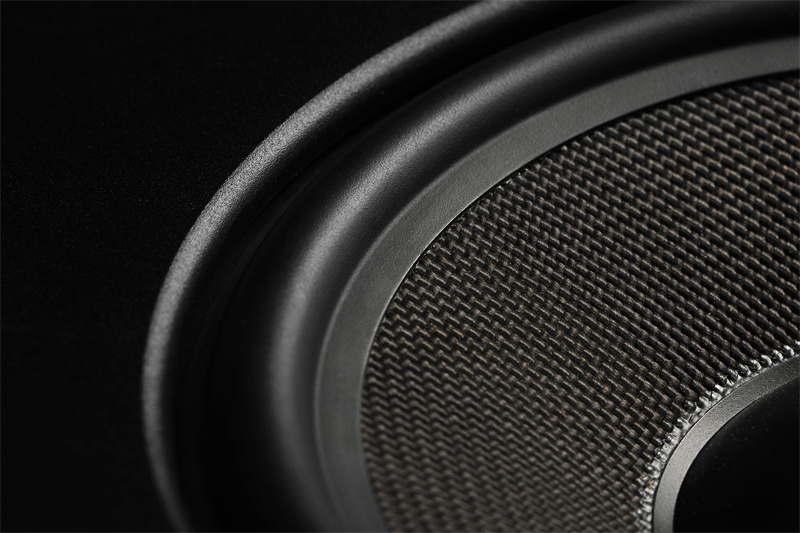

Woofer type kevlar
- HT 82P-IW
6mm aluminum panel, compact box, vented box system.
The high frequency can be directed towards the listening area.
Suitable for multiple installation methods.The design and technology make it can be used in-wall & on-wall.It will give you the best home theater and hi-fi reproductions.
Active Speaker,280W low channel+110W high channel.
Better frequency and phase response.In powered monitors,internal amplifiers are precision-matched to drivers,delivering optimal power at all times for cleaner sound.
Additional DSP-Out with the full range of features of the powerful DSP that lets you operate a non-network-compatible active speaker.High resolution 96 kHz AD/DA converters, FIR-filtering, low latency.
The high frequency can be directed towards the listening area.
Suitable for multiple installation methods.The design and technology make it can be used in-wall & on-wall.It will give you the best home theater and hi-fi reproductions.
Active Speaker,280W low channel+110W high channel.
Better frequency and phase response.In powered monitors,internal amplifiers are precision-matched to drivers,delivering optimal power at all times for cleaner sound.
Additional DSP-Out with the full range of features of the powerful DSP that lets you operate a non-network-compatible active speaker.High resolution 96 kHz AD/DA converters, FIR-filtering, low latency.
- COMPONENTS
- PERFORMANCE
- DIMENSIONS

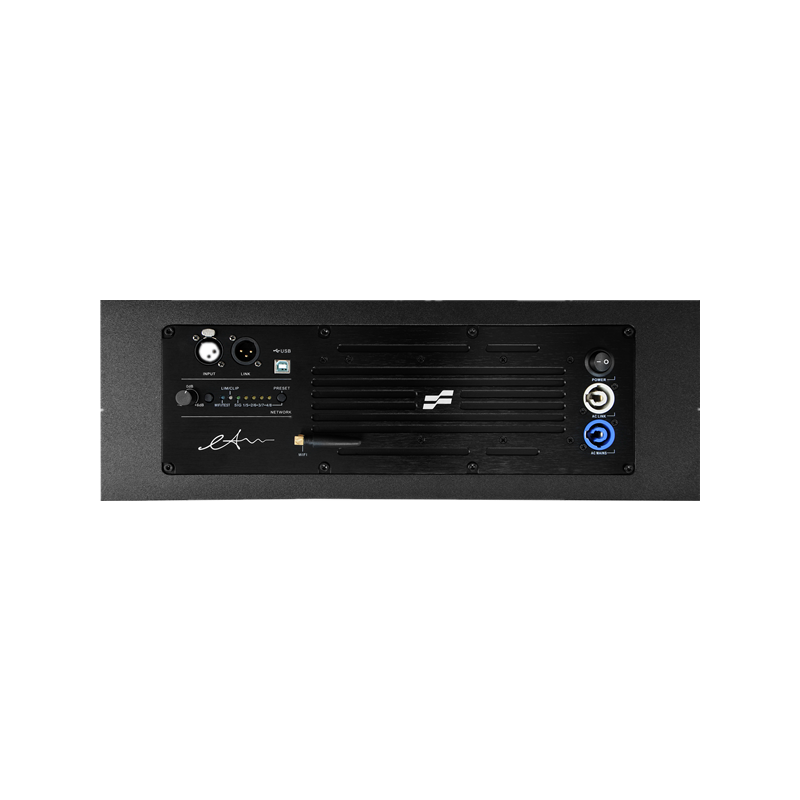

Amplifier Type Class D
Input Senstivity +15 dBu
Input Impedance Balanced / Unbalanced 47 kΩ / 26 kΩ
Input Connector Male/Female XLR Connector
Power Output： 280 W Continuous 280 W low channel 110 W high channel
THD+N ≦0.01%
Protection System Over Current Protection,Over Load Protection,DC Protection,High Frequency Protection
High Temperature Protection,Under/Over Voltage Protection,Power Limite
AC Power Universal mains regulated power supply with PFC,85V~265V，45Hz~65Hz
Maximum SPL 119 dB
Frequency response 55 Hz - 20k Hz
Input Senstivity +15 dBu
Input Impedance Balanced / Unbalanced 47 kΩ / 26 kΩ
Input Connector Male/Female XLR Connector
Power Output： 280 W Continuous 280 W low channel 110 W high channel
THD+N ≦0.01%
Protection System Over Current Protection,Over Load Protection,DC Protection,High Frequency Protection
High Temperature Protection,Under/Over Voltage Protection,Power Limite
AC Power Universal mains regulated power supply with PFC,85V~265V，45Hz~65Hz
Maximum SPL 119 dB
Frequency response 55 Hz - 20k Hz
Cabinet specifications (H × W × D) 870 × 500 × 161 mm
Frameless grill Non
Accessory Thickness 15mm
Product weight (each) 28.8 kg
Shipping weight (each) 32.5 kg
Frameless grill Non
Accessory Thickness 15mm
Product weight (each) 28.8 kg
Shipping weight (each) 32.5 kg
