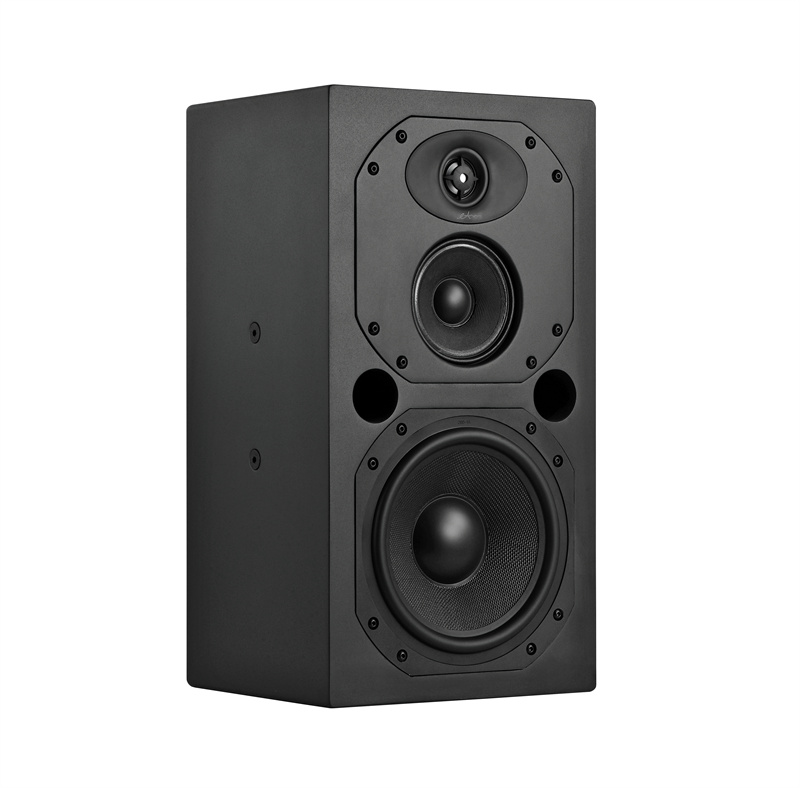

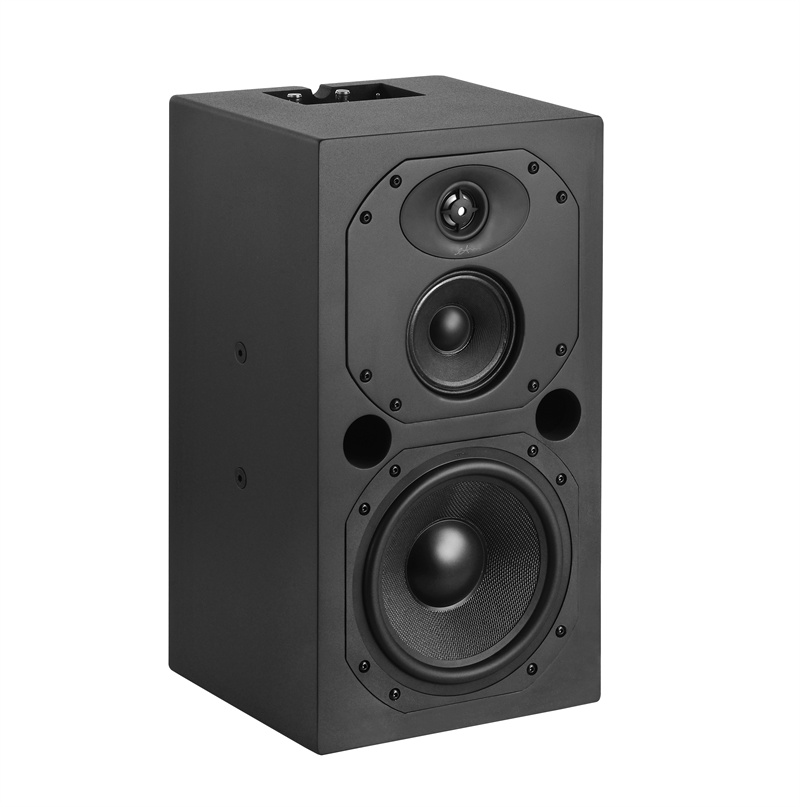

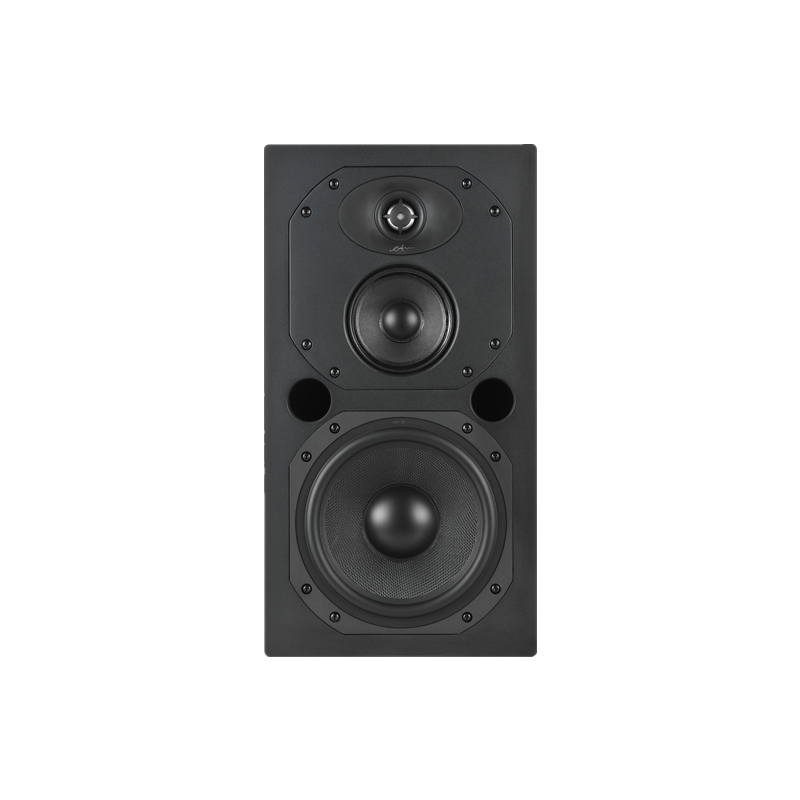

• HT 81
Plywood cabinet,3-way vented box system, extended low frequencies.

The HT81 can be installed behind a perforated video screen or cabinet grille cloth in most installations. It features a Screen Compensation Switch to accommodate installation in this environment.

3-way vented box system design. High end crossover with Hi-end resistors, Metallized Polypropylene film capacitors, Air core inductors of oxygen free copper wire.

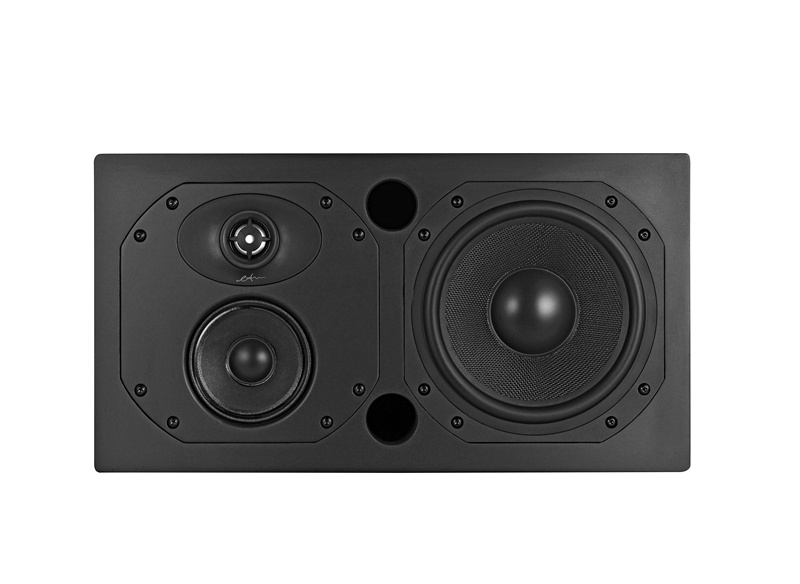

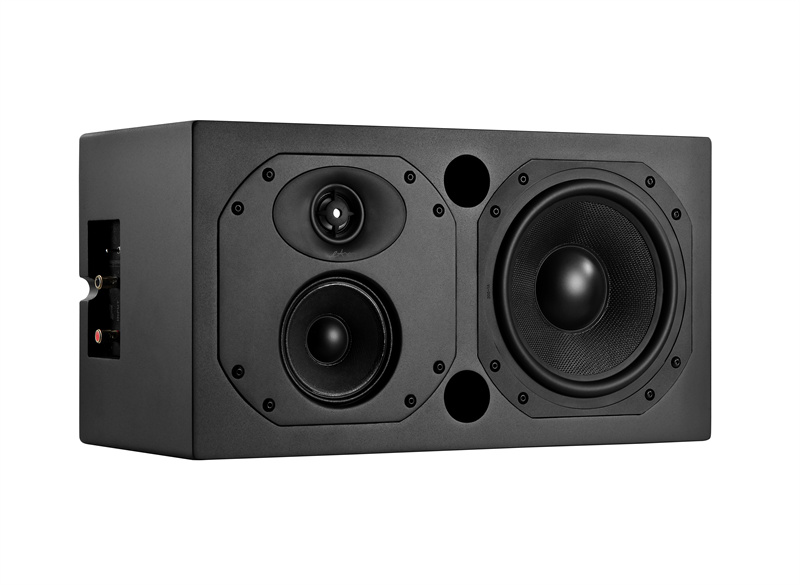

The HT81’s midrange/tweeter baffle can rotate 360 degrees for horizontal or vertical placement in cabinetry—maintaining the proper sonic vertical alignment of the mid-range and tweeter.

The baffle may also be angled for more accurate imaging when the speaker is far off-axis.
  • COMPONENTS
  • PERFORMANCE
  • DIMENSIONS
Tweeter count         1
Tweeter size            1.25" (31.75mm)
Tweeter type           aluminium dome
Mid-range count     1
Mid-range size        4.5" (106.6 mm)
Mid-range type       mixed paper cone
Woofer count          1

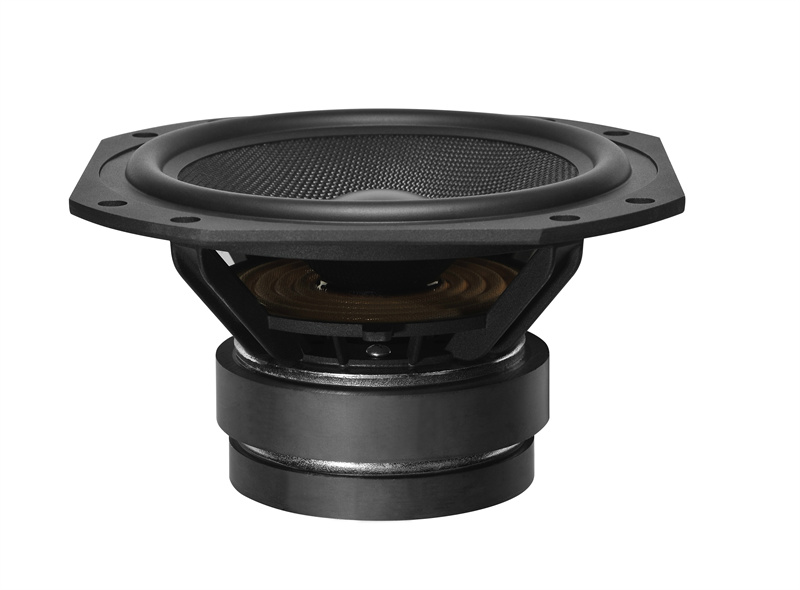

Woofer size             8" (203 mm)

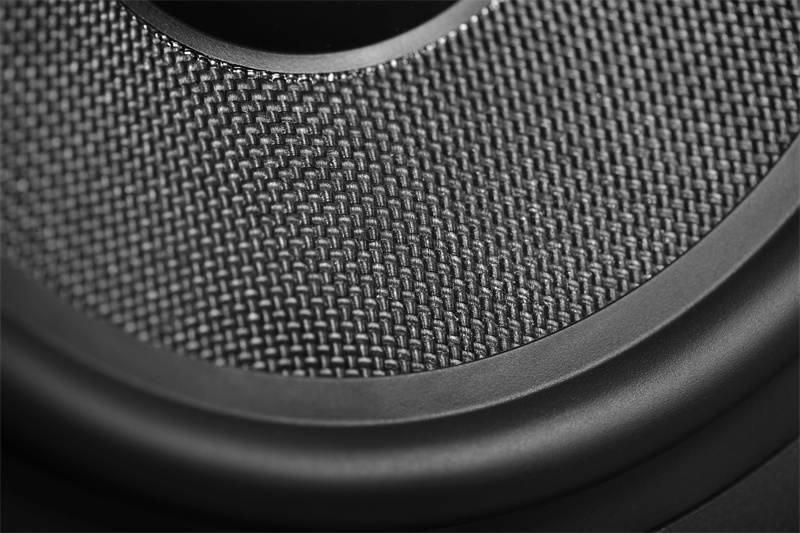

Woofer type            kevlar
Power handing                            150W RMS / 600W Peak
Impedance (nominal)                  4 ohm
Sensitivity (dB @ 2 V, 1 m)   　   90 dB
Frequency response                    60 Hz - 20k Hz
Cabinet specifications (H × W × D)      476 × 254 × 236 mm
Frameless grill dimensions (H × W)      476 × 254× 15 mm
Product weight (each)         　　　        12.3 kg
Shipping weight (each)                          13.65 kg
Grill material                                          Flexible Removable Magnetic Grille
